HIMSEN HYUNDAI 6H 17/28 Crankshaft Repair In Turkey

Himsen Hyundai 6H17/28 crankshaft has been successfully repaired at MIP Mersin, Turkey. The vessel owned by an Italian company faced a major breakdown in one of their auxiliary engine, Himsen Hyundai 6H17/28. RA Power Solutions was approached and deputed our two technicians along with onsite crankshaft grinding equipment. The vessel was anchored at MIP Mersin, Turkey.

Following are the major Engine and Crankpin details: S. No. Engine and Crankpin Details

Main Observations of Crankshaft of HIMSEN HYUNDAI 6H 17/28

i) On visual inspection, it was found that it was a case of lubricating oil pump failure, damaging the bearings of all connecting rods.

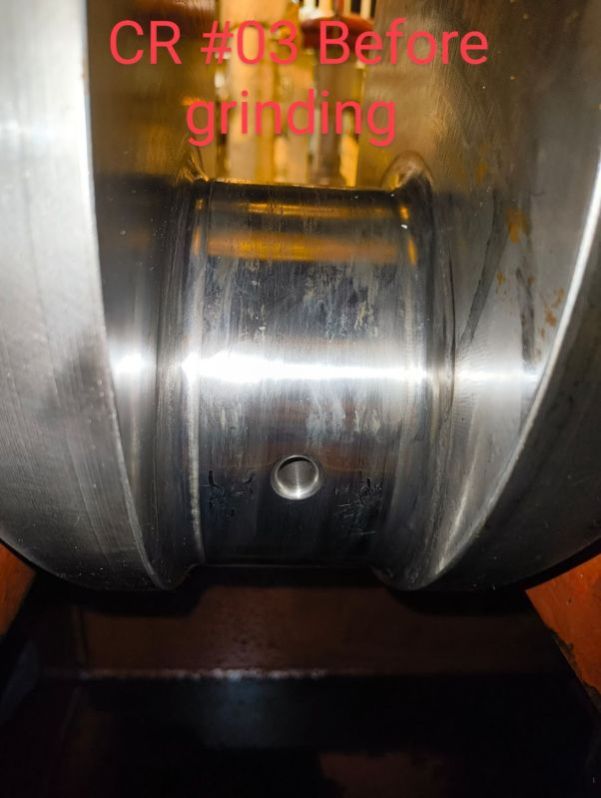

ii) The bearing material was found embedded on all six (6) crankpins and was carefully removed. After polishing the crankpins, the dimensional inspection was conducted. The taper, ovality ranging from 0.22 MM to 0.86 was observed. CR Pin Hardness Inspection CR Pin of HIMSEN HYUNDAI 6H 17/28 Before Repair.

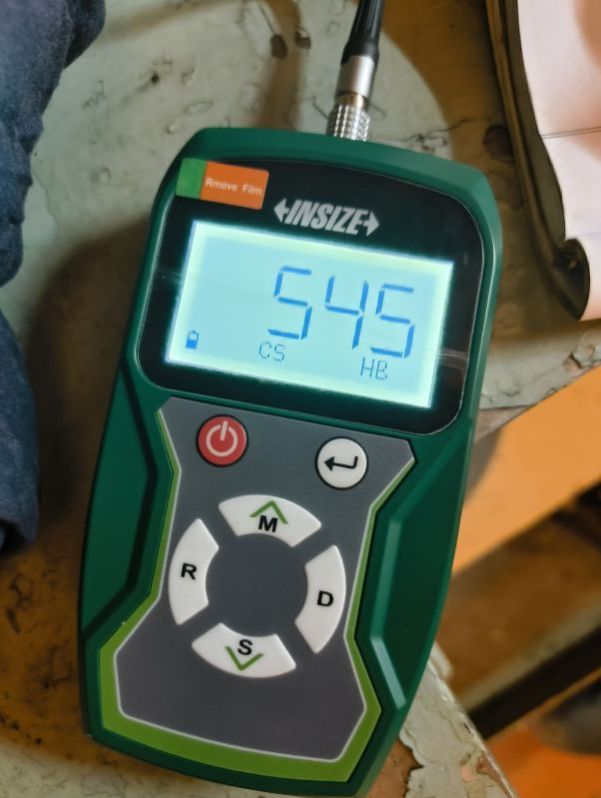

iii) The hardness was checked and was found within limits, except for a few spots, which were found not harmful to the crankshaft.

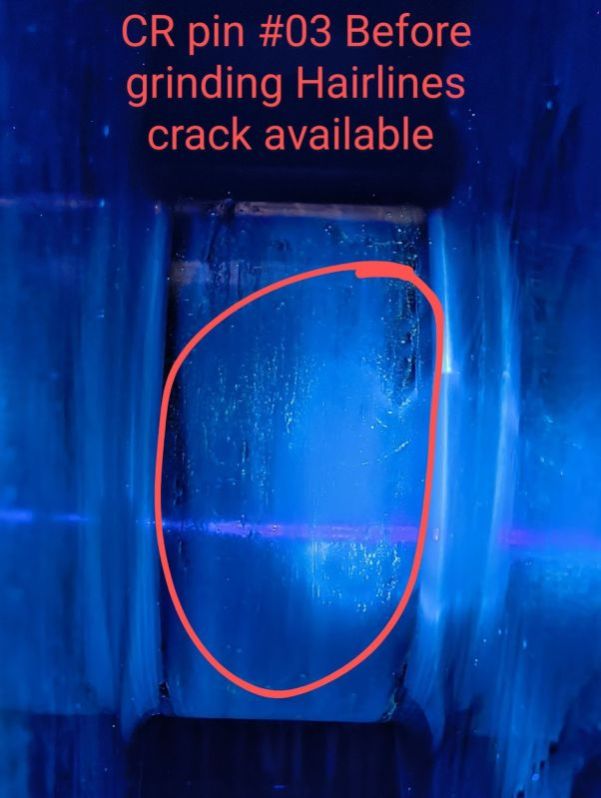

iv) The crankpins were subject to a MPI test for crack detection and minor hairline cracks were observed, All other parameters were found within the limit.

Action Taken By RA Power Solutions Technicians For Damaged Crankpins:

i) The grinding of all six (6) crankpins was undertaken by our insitu crankshaft grinding machine.

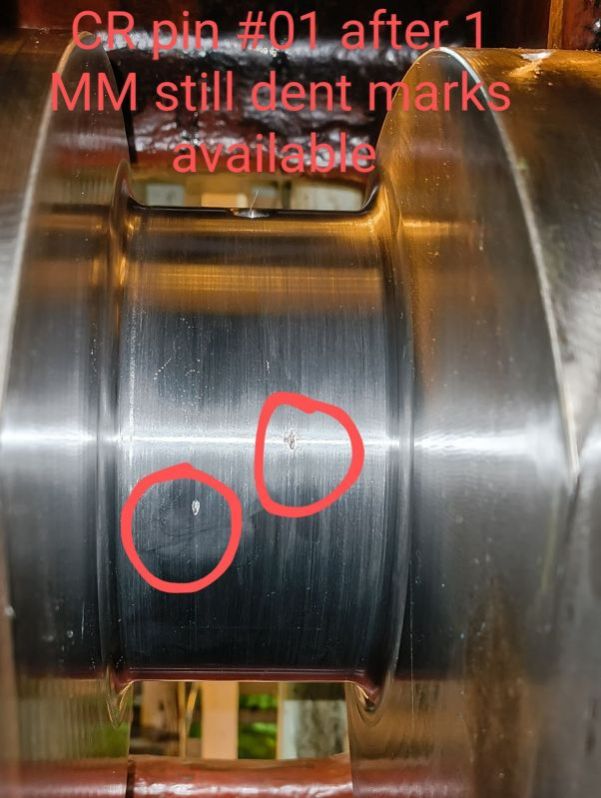

ii) Three (3) number of crankpins diameter was reduced by 1.00 MM and the final size was maintained as 174.00 MM.

iii) Three (3) number of crankpins diameter was reduced by 1.50 MM and the final size was maintained at 173.50 MM.

Action Taken By RA Power Solutions Technicians For Damaged Crankpins:

The tolerance of all six (6) number crankpins was maintained with 0.02 MM.
