Repair of Crankshaft of MAN B&W Engine 5L16/24
 |
|
 |
ii) The ovality report in brief of crankpin is pasted below
| Ovality of All Crankpins | Remarks | |
| CR PIN #01 | 0.38 MM | |
| CR PIN #02 | 0.10 MM | This Pin is already down by 1.5 MM |
| CR PIN #03 | 0.40 MM | |
| CR PIN #04 | 0.25 MM | |
| CR PIN #05 | 0.10 MM | |
iii) All the crankpins were ground according to the extent of ovality.
iv) The bearings of undersize was supplied by RA Power Solutions.
v) The Engine was commissioning in presence of our technicians and performance was found satisfactory.
|
Crankshaft After Polishing of MAN B&W 5L16/24 Engine |

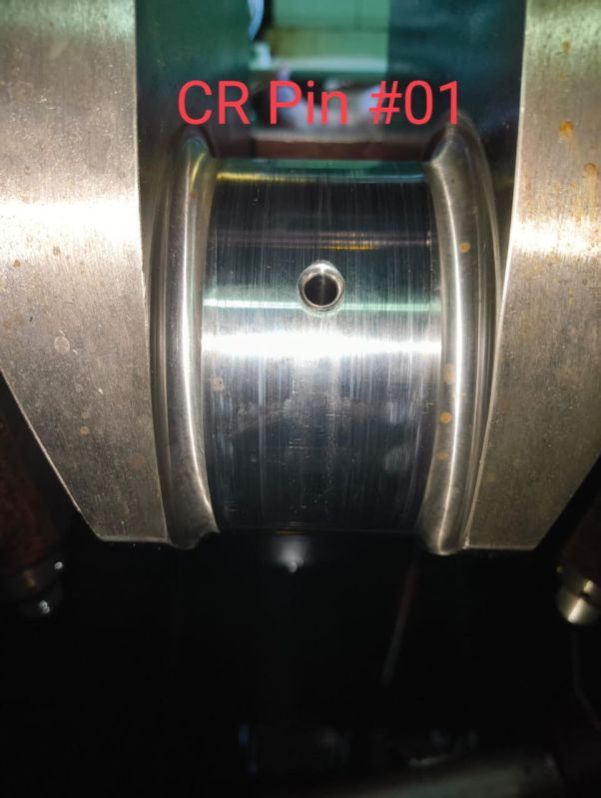

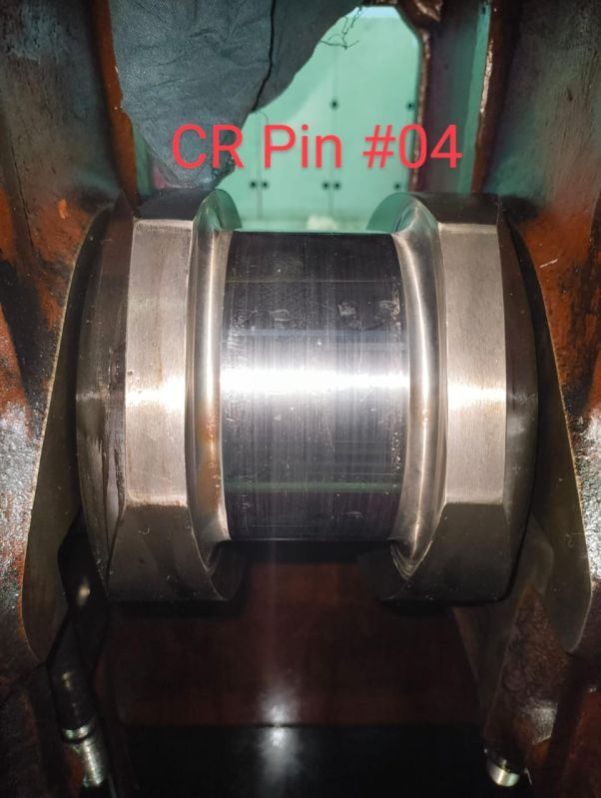

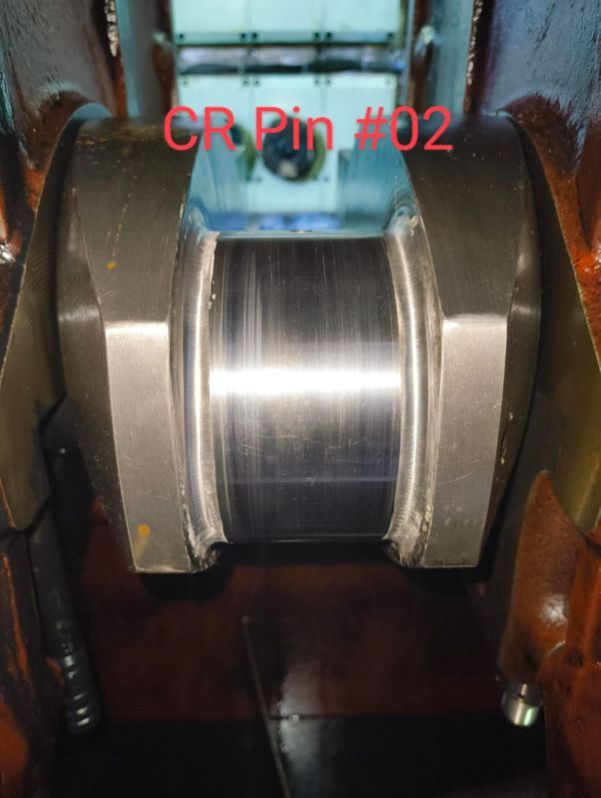

Crankpin of MAN B&W 5L16/24 Engine After polishing |
